Experiments with realtime convolution reverb - (Eksperimenter med realtids foldningsrumklang)

Spring 2008 studies group under Ole Caprani

Our goal is to implement a realtime plugin to do convolution.
The basic “Input Side” is way too slow (convolution implemented with two for loops), so we will be experimenting with a dft-multiply-idft algorithm (sometimes called “The Overlap-and-Save algorithm”) instead.
To do the actual fft we will use the fftw3 library (http://www.fftw.org), which implements the “Fastest Fourier Transform in the West” algorithm.
Currently we have implemented and tested convolution in the frequency domain where the input sound is partitioned which makes real time usage possible.

Group

Jonas Suhr Christensen - suhr@daimi.au.dk - 20032491
Bent Bisballe Nyeng - deva@daimi.au.dk - 20001467

Analysis

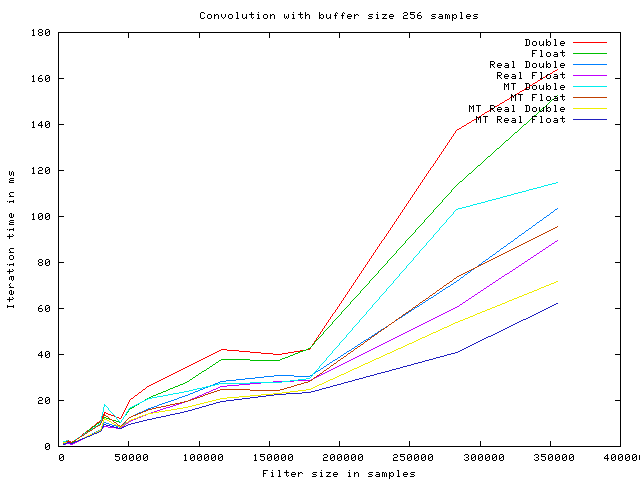

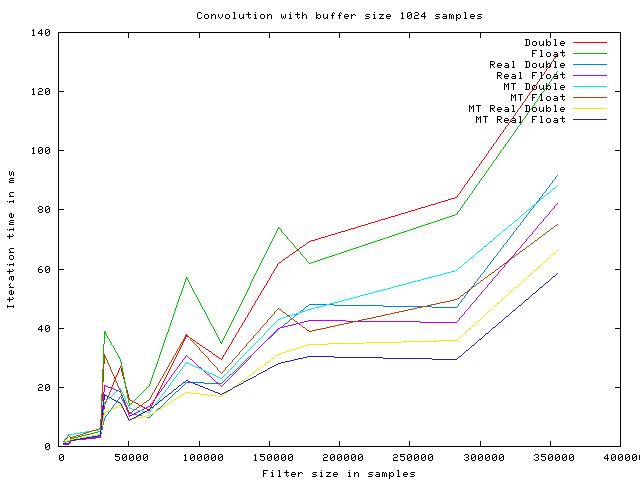

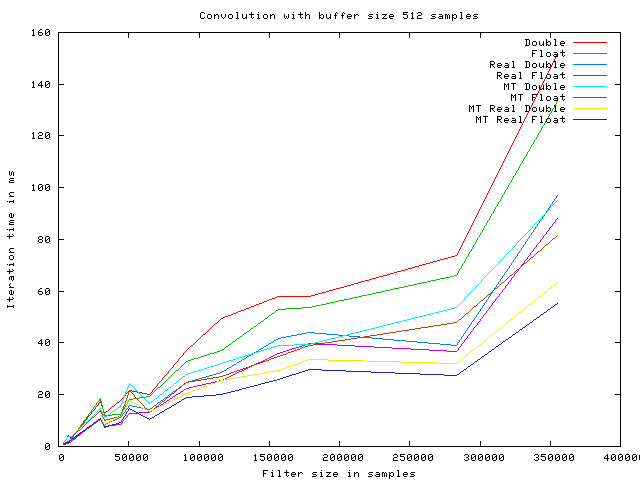

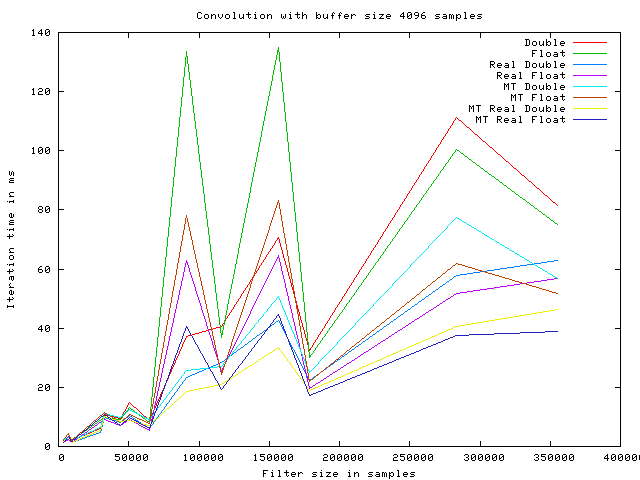

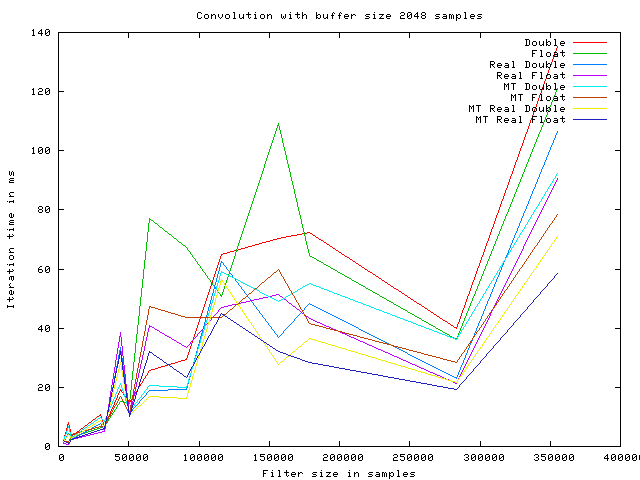

The following graphs show the execution time of a single convolution iteration, using the overlap and save algorithm with various optimizations enabled.
The timings are produced using a Intel(R) Core(TM)2 Duo CPU E6750 @ 2.66GHz, with 4096KB cache.
The algorithm optimizations are named as follows:

Double This is an implementation with no particular optimizations.
Float This is a simple implementation using float as the internal datatype.
Real Double This is an implementation using real ffts instead of complex.
Real Float This is an implementation using real ffts instead of complex, with float as internal datatype.
MT Double This is an implementation running on multiple CPUs.
MT Float This is an implementation with float as internal datatype, running on multiple CPUs.
MT Real Double This is an implementation using real ffts instead of complex, running on multiple CPUs.
MT Real Float This is an implementation using real ffts instead of complex, with float as internal datatype, running on multiple CPUs.

As it is seen on the graphs the speed improves with the buffer size increasing, up to 1024 samples. At this point the iteration time starts fluctuating. This may be caused by internal cache size on the given CPU.

Literature

T. G. Stockham Jr. High-speed convolution and correlation. AFIPS Proc. 1966 Spring Joint Computer Conf., Vol 28, Spartan Books, 1966, pp. 229 - 233.
The Scientist and Engineer's Guide to Digital Signal Processing, copyright ©1997-1998 by Steven W. Smith. For more information visit the book's website at: http://www.DSPguide.com
Real-time partitioned convolution for Ambiophonics surround sound. Torger, A.; Farina, A. Applications of Signal Processing to Audio and Acoustics, 2001 IEEE Workshop on the - Volume , Issue , 2001 Page(s):195 - 198

Further online references can be found in the links section.

Code

You can get the source code for the software used to create these tests here: conv-01242008.tar.gz
The source code depends on libsndfile and fftw3. Compile it with:

make

and run it with

./conv_opt [filterfile] [soundfile] [outputfile] [buffer size]

The input and filter files must be mono wav files.

Examples

Here are a dry input file called drums.wav and a wet output file called output.wav: sounds.tar.gz
Get impulse responses here http://www.voxengo.com/impulses.
NOTE: Remember to convert them into mono before usage. Running the application on stereo files has undefined results.

Realtime LADSPA plugin

We have experimented with implementing our code as a realtime ladspa plugin.
This however is a very fragile implementation that only works on a hardcoded filter file and jack buffersize.
If still interested, it can be fetched here: conv_opt_ladspa-0.1.tar.gz
